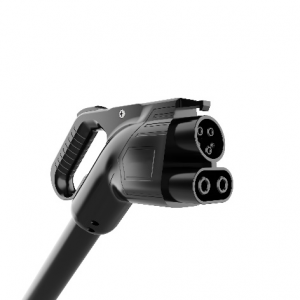

100A IEC 62196-3 CCS Combo 2 DC EV Charging Connector
Product Introduction
The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 2 connectors to provide power at up to 350 kilowatts, with two additional direct current (DC) contacts to allow high-power DC fast charging. Combo 2 can be found in Europe, South America, South Africa, Arabia, India, Oceania and Australia. Automobile manufacturers that support CCS include BMW, Daimler, FCA, Ford, Jaguar, General Motors, Groupe PSA, Honda, Hyundai, Kia, Mazda, MG, Polestar, Renault, Rivian, Tesla, Mahindra, Tata Motors and Volkswagen Group. Shell colors are black, white, or customized.
Product Features
Meet IEC 62196-3 Standard;
Nice shape, hand-held ergonomic design, easy to use;
Protection class: IP54(in mated conditions);
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.
Mechanical properties
Rated current:80A/125A/160A/200A;
Operating voltage: 1000V DC;
Insulation resistance:>1000MΩ(DC1000V);
Terminal temperature rise:<50K;
Withstand voltage:3000V;
Contact impedance: 0.5mΩ Max
Vibration resistance: Meet JDQ53.36.1.1-53.36.1.2 requirements.
Materials
Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
Contact Pin: Copper alloy, silver or nickel plating;
Sealing gasket: rubber or silicon rubber.
Cable
|
Rated Current(A) |
Cable Specification |
Remark |
|
63/80 |
2X16MM2+16MM2+3X2X0.75MM2 TPUΦ26/TPEΦ32 |
Shell color: Black/White Cable color: Black/Orange/Green |
|
125 |
2X35MM2+25MM2+3X2X0.75MM2 TPUΦ32/TPEΦ34 | |
|
160 |
2X50MM2+25MM2+3X2X0.75MM2 TPUΦ34/TPEΦ37 | |
|
200 |
2X70MM2+25MM2+3X2X0.75MM2 TPUΦ37/TPEΦ40 |
Installation & Storage
Please match your charging point correctly;
Store it in waterproof place to avoid short circuit during use.
