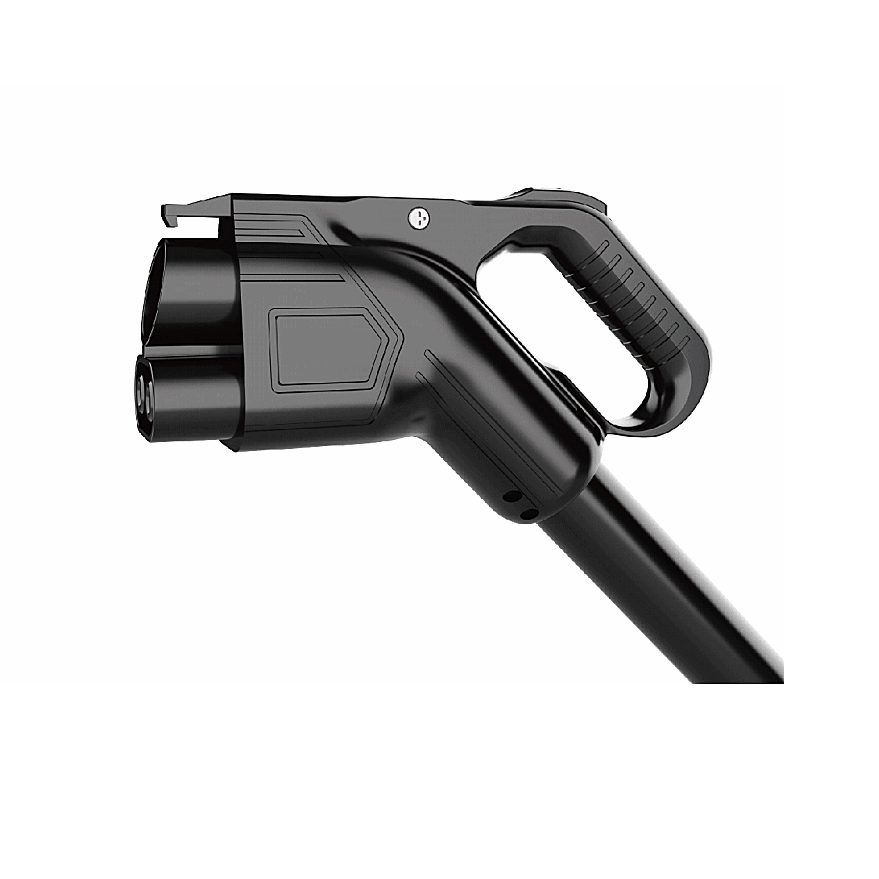

100A IEC 62196-3 CCS Combo 1 DC EV Charging Connector
Product Introduction
The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 2 connectors to provide power at up to 350 kilowatts, with two additional direct current (DC) contacts to allow high-power DC fast charging. Combo 1 chargers are primarily found in North and Central America, Korea and Taiwan. Shell colors are black, white, or customized.
Product Features
The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 2 connectors to provide power at up to 350 kilowatts, with two additional direct current (DC) contacts to allow high-power DC fast charging. Combo 1 chargers are primarily found in North and Central America, Korea and Taiwan. Shell colors are black, white, or customized.
Meet IEC 62196-3 Standard;
Nice shape, hand-held ergonomic design, easy to use;
Protection class: IP54(in mated conditions);
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.
Mechanical properties
Mechanical life: no-load socket in/pull out >10000 times
Insertion and coupled Force: 45N<F<80N;
Operating temperature: -30°C ~ +50°C
Materials
Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
Contact Pin: Copper alloy, silver or nickel plating;
Sealing gasket: rubber or silicon rubber.
|
Rated Current(A) |
Cable Specification |
Remark |
|
63/80 |
2X16MM2+16MM2+3X2X0.75MM2 TPUΦ26/TPEΦ32 |
Shell color: Black/White Cable color: Black/Orange/Green |
|
125 |
2X35MM2+25MM2+3X2X0.75MM2 TPUΦ32/TPEΦ34 | |
|
160 |
2X50MM2+25MM2+3X2X0.75MM2 TPUΦ34/TPEΦ37 | |
|
200 |
2X70MM2+25MM2+3X2X0.75MM2 TPUΦ37/TPEΦ40 |
Installation & Storage
Please match your charging point correctly;
Store it in waterproof place to avoid short circuit during use.
