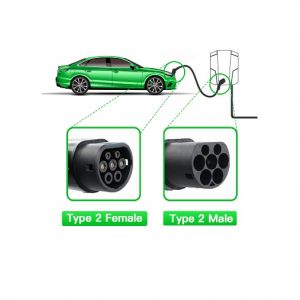

32A Type 2 EV Charging Extention Cable Male Female
Product Introduction

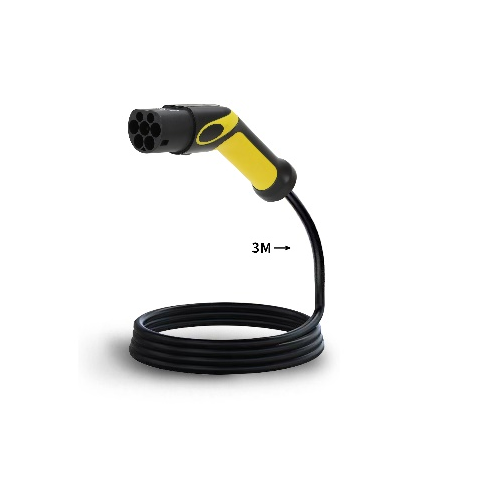

To choose the right charging cable for your E-car, you must check the charging power of your vehicle accepted. This cable is suitable for AC chargers up to 8KW (250V AC/32AMP). A 5m length of cable is usually sufficient if you always park with the charging socket of your vehicle closest to the terminal. On the other hand, if you want to keep the freedom to park in forward or reverse gear , we recommend a length of 7m or more, it depends on the length of your vehicle.
Product Features
| Features | 1. Meet 62196-2 IEC 2010 SHEET 2-IIe standard 2. Nice appearance, hand-held ergonomic design, easy plug 3. Excellent protection performance,protection grade IP55(working condition) |
| Mechanical properties | 1. Mechanical life: no-load plug in/pull out＞5000 times 2. Coupled insertion force: >45N<80N 3. Impat of external force: can afford 1m drop and 2t vehicle run over pressure |
| Electrical Performance | 1. Rated current：32A/63A 2. Operation voltage: 415V 3. Insulation resistance: ＞1000MΩ（DC500V） 4. Terminal temperature rise: ＜50K 5. Withstand Voltage: 2000V 6. Contact Resistance: 0.5mΩ Max |
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 2. Conntact bush: Copper alloy,silver plating |
| Environmental performance | 1. Operating temperature: -30°C~+50°C |
Specification
Rated Current: 16A/32Amp/40Amp
Operation Voltage: AC120V/AC240V/AC480V
Insulation Resistance: ＞1000MΩ（DC 500V）
Withstand Voltage: 2000V
Pin Material: Copper Alloy, Silver Plating
Shell Material: Thermoplastic, Flame Retardant Grade UL94 V-0
Mechanical Life: No-Load Plug In / Pull Out ＞10000 Times
Contact Resistance: 0.5mΩ Max
Terminal Temperature Rise: ＜50K
Operating Temperature: -30°C~+50°C
Impact Insertion Force: >300N
Waterproof Degree: IP55
Cable Protection: Reliability of materials, antifoaming, pressure-resistant, abrasion resistance, impact resistance and high oil
Flame Retardant: Grade TUV, UL, CE Approved
Cable
|
Rated Current(A) |
Cable Specification |
Remark |
|
16(Single phase) |
3X2.5MM2+1X0.75MM2 TPUΦ10.5/TPEΦ13 |
Shell color: Black/White Cable color: Black/Orange/Green |
|
16(Three phase) |
5X2.5MM2+1X0.75MM2 TPUΦ13/TPEΦ16.3 | |
|
32/40(Single phase) |
3X6MM2+1X0.75MM2 TPUΦ13/TPEΦ16.3 | |
|
32/40(Three phase) |
5X6MM2+1X0.75MM2 TPUΦ16.3 |
Installation & Storage
Please match your charging point correctly;
For the longevity of your cables, it’s best to keep them well organized and in damp free environment while stored in your EV. We recommend using a cable storage bag to keep your cables stored safely.
