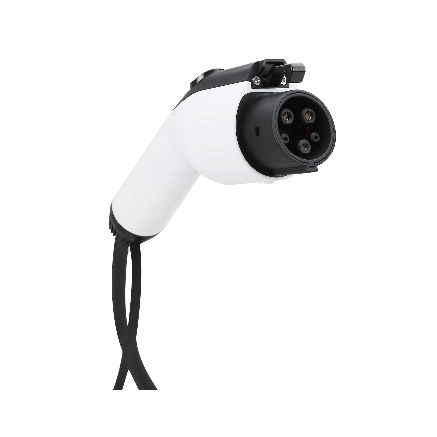

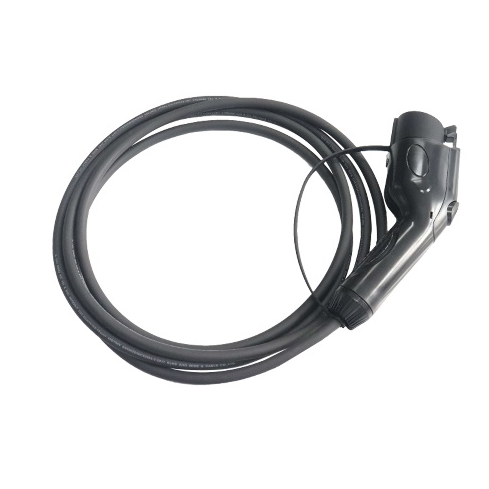

32A Type 1 EV Charging Extention Cable

Rated Current: 16A/32Amp/40Amp

Operation Voltage: AC120V/AC240V/AC480V

Insulation Resistance: >1000MΩ (DC 500V)

Withstand Voltage: 2000V

Pin Material: Copper Alloy, Silver Plating

Contact Resistance: 0.5mΩ Max

Operating Temperature: -30°C~+50°C

Waterproof Degree: IP55


Details

Product Tags

Product Introduction

Type 1 is a single-phase plug and is standard for EVs from America and Asia (Japan & Korea). It allows you to charge your car at a speed of up to 7.4 kW, depending on the charging power of your car and grid capability. This plug is designed for use in EV charging cables and will mate with any J1772 specified socket. It’s rated at 70A and therefore are suitable for 16 and 32 amp or higher current applications as per the IEC 61851-2001 / SAE J1772-2001 standard.  Shell colors are black, white, or customized. A 5m length of cable is usually sufficient if you always park with the charging socket of your vehicle closest to the terminal. On the other hand, if you want to keep the freedom to park in forward or reverse gear , we recommend a length of 7m or more, it depends on the length of your vehicle.

cscsvs (2)

Product Features

Meet SAE J1772 standard;
Nice shape, hand-held ergonomic design, easy to use;
Protection class: IP55(in mated conditions);
Select either 5 meter or customized length charging cable;
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.

Specification

Rated Current:   16A/32Amp/40Amp
Operation Voltage:  AC120V/AC240V/AC480V
Insulation Resistance: >1000MΩ(DC 500V)
Withstand Voltage: 2000V
Pin Material:  Copper Alloy, Silver Plating
Shell Material: Thermoplastic, Flame Retardant Grade UL94 V-0
Mechanical Life:  No-Load Plug In  / Pull Out >10000 Times
Contact Resistance:  0.5mΩ Max
Terminal Temperature Rise:  <50K
Operating Temperature: -30°C~+50°C
Impact Insertion Force:  >300N
Waterproof Degree: IP55
Cable Protection: Reliability of materials, antifoaming, pressure-resistant, abrasion resistance, impact resistance and high oil
Flame Retardant:  Grade TUV, UL, CE Approved

Cable

Rated Current(A)

Cable Specification

Remark

16

3X2.5MM2+1X0.75MM2 TPUΦ10.5/TPEΦ13

Shell color: Black/White           Cable color: Black/Orange/Green

32/40

3X6MM2+1X0.75MM2 TPUΦ13/TPEΦ16.3

Installation & Storage

Please match your charging point correctly;
For the longevity of your cables, it’s best to keep them well organized and in damp free environment while stored in your EV. We recommend using a cable storage bag to keep your cables stored safely.
