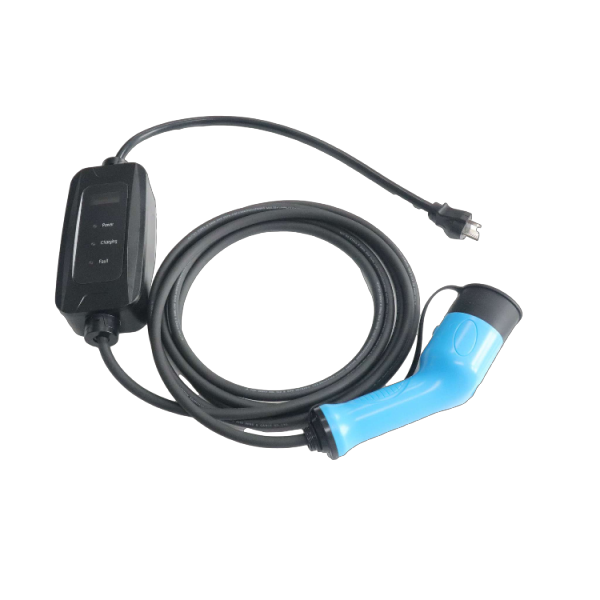

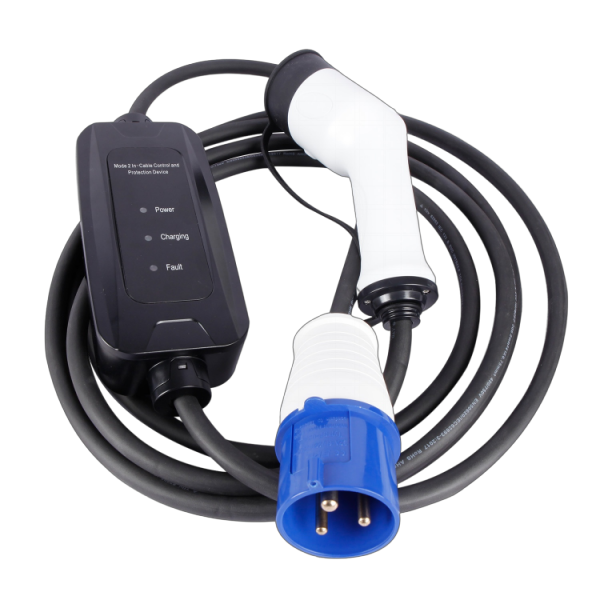

Type 2 Electric Car Charger 16A 32A Level 2 Ev Charge Ac 7Kw 11Kw 22Kw Portable Ev Charger

Introducing our latest innovation in electric vehicle charging technology – the Type 2 Electric Car Charger. Our fast charging Level 1 & Level 2 EV Charger is an adjustable 8/10/13/16/20/24/32amp charger that supports charging for all EVs models. This versatile charger is designed to meet the growing demand for efficient and convenient electric vehicle charging.

With the ability to charge Level 2 vehicles at up to 32Amp 240V, and a maximum power output of 7 KW, our charger is 8 times faster than a normal 8A level 1 charger. This means that you can enjoy faster and more efficient charging for your electric vehicle, saving you time and giving you peace of mind when it comes to range anxiety.

Our portable EV charger is designed for convenience and ease of use. It comes with a range of adjustable amperage settings, including 16A and 32A Level 2 EV charge, as well as AC 7Kw, 11Kw, and 22Kw options. This means that you can customize the charging speed to suit your specific vehicle and charging needs, providing maximum flexibility when it comes to charging your electric vehicle.

Whether you need to top up your vehicle’s battery at home, at work, or on the go, our Type 2 Electric Car Charger is the perfect solution. It’s portable, reliable, and built to the highest quality standards, ensuring safe and efficient charging for all electric vehicle models.

Say goodbye to slow and inefficient charging, and hello to fast and reliable electric vehicle charging with our fast charging Level 1 & Level 2 EV Charger. With its adjustable amperage settings, fast charging capabilities, and portable design, it’s the ideal choice for every electric vehicle owner. Choose convenience, choose efficiency, choose our Type 2 Electric Car Charger.

Get A Quote Download as PDF

Details

Product Tags

Product Introduction

Fast Charging Level 1 & Level 2 EV Charger with adjustable 8/10/13/16/20/24/32amp. Supports charging for all EVs models. charge Level 2 vehicle, up to 32Amp 240V, 7 KW Max., 8x faster than a normal 8A level 1 charger.

Product Features

【Performance in Extreme Weather】Outside NEMA enclosures of Voltre Level 1 & Level 2 charger protect all the electric components from the surrounding environment. NEMA IP65 enables you can charge against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed water. With 25 ft cable to charge your EVs at a longer distance for driveway/garage use. Maximum continuous charging power for electric vehicles at home and on the road. (-22 °F ~122 °F)

【Easy Plug-&-Charge Tech without any APP】 Very simple to set up and charge. Plug the SAE J1772 connector of Electric Vehicle Charger into your car (need a J1772 to Tesla charging adapter (not included) if your vehicle is Tesla), and set up current (8-32A) and delay charging (1-8 Hours) by the LED Screen (Caution: NEMA 5-15 adapters: Level 1 Charger, 16A Max.), the screen with temperature display and LED indicators allow you a quick glance of the charging status.

Specification

Rated Current	16A / 20A/ 24A / 32A ( adjustable current )
Rated Power	Max 7.2KW
Operation Voltage	AC 110V~250 V
Rate Frequency	50Hz/60Hz
Leakage Protection	Type A RCD +DC 6mA ( Optional )
Withstand Voltage	2000V
Contact Resistance	0.5mΩ Max
Terminal Temperature Rise	＜50K
Shell Material	ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life	No-Load Plug In / Pull Out ＞10000 Times
Operating Temperature	-25°C ~ +55°C
Storage Temperature	-40°C ~ +80°C
Protection Degree	IP67
EV Control Box Size	200mm (L) X 93mm (W) X 51.5mm (H)
Weight	2.8KG
OLED Display	Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard	IEC 62752 , IEC 61851
Certification	TUV,CE Approved
