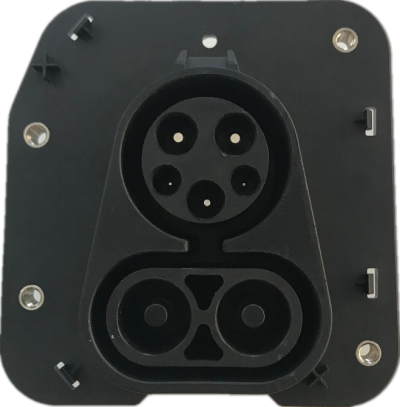

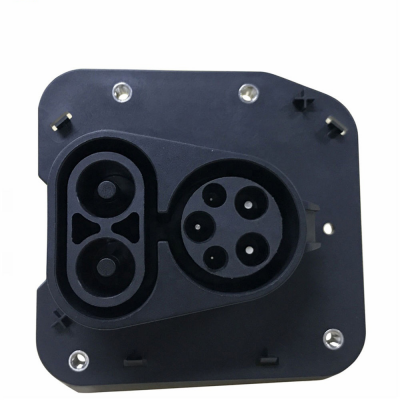

Model 3 Special Converter Socket Plug Electric Car Charging CCS Combo 1
Product Introduction
The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 1 (CCS1) or Combo 2 (CCS2) connectors to provide power at up to 350 kilowatts (kW) (max 500 amps), although higher values are coming. These two connectors are extensions of the IEC 62196 Type 1 and Type 2 connectors, with two additional direct current (DC) contacts to allow high-power DC fast charging.
Product Features
Rated Voltage : 400V-450V
Rated Current : 125A-250A
Terminal temperature rise : <50K
Insulation resistance : >1000MΩ(DC500V)
Withstand voltage : 2000V
Contact impedance : 0.5ohm max
Vibration resistance : Meet JDQ53.36.1.1-53.36.1.2 requirements.
Mechanical life : no-load plug in/pull out >10000 times
Operating temperature : -30°C ~ +50°C
Current voltage : 16A ,32A ,240V-400V
Specification
| Features | 1. Meet 62196-3 IEC 2014 SHEET 3-IIIB standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP65 | |
| 4. DC Max charging power: 90kW | |
| 5. AC Max charging power:41.5kW | |
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times |
| 2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 150A 1000V DC MAX |
| 2. AC input: 63A 240/415V AC MAX | |
| 3. Insulation resistance：＞2000MΩ（DC1000V） | |
| 4. Terminal temperature rise：＜50K | |
| 5. Withstand Voltage：3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 |
| 2. Pin：Copper alloy,silver + thermoplastic on the top | |
| Environmental performance | 1. Operating temperature: -30°C~+50°C |
