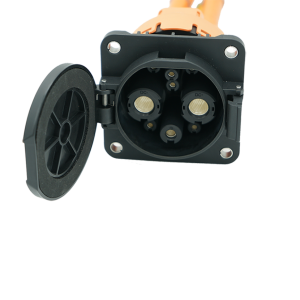

Chademo socket 150A DC CHAdeMO EV Fast Japanese charge Socket


Details

Product Tags

Product Introduction

pro3 (3)
pro3 (1)

CHAdeMO plugs were first adopted by Nissan, Toyota, and other Japanese manufacturers around 2010-2011, hoping to create a worldwide standard charging system across the electric vehicle industry.

It was the first rapid-charging platform for electric vehicles, enabling charging rates of up to 150 kWh, although the current maximum for most EVs is 50 kWh.

The plug is an industry-standard and highly popular across the UK and EU

Product Features

Rated current: 80A ,125A, 150A ,200A
Operating voltage: 1000V DC
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Max Charging Power: 50KW

pro3

Specification

Features
1.Comply with IEC 62196-3:2014 standard
2. Nice appearancehand-held ergonomic designeasy plug



Mechanical properties
1. Mechanical life : no-load plug in/pull out10000 times



Electrical Performance
1. Rated current125A/150A/200A
2. Operation voltage600V DC
3. Insulation resistance:>2000MΩDC500V
4. Terminal temperature rise:<50K
5.Withstand Voltage3000V AC/1min
6. Contact Resistance0.5mΩ Max



Applied Materials
1. Case Material: aluminum alloy
2. TerminalCopper alloy,silver plated surface
3.Inner core:thermoplastic
4.Excellent protection performance, protection grade IP54



Environmental performance
1. Operating temperature: -30°C~+50°C
