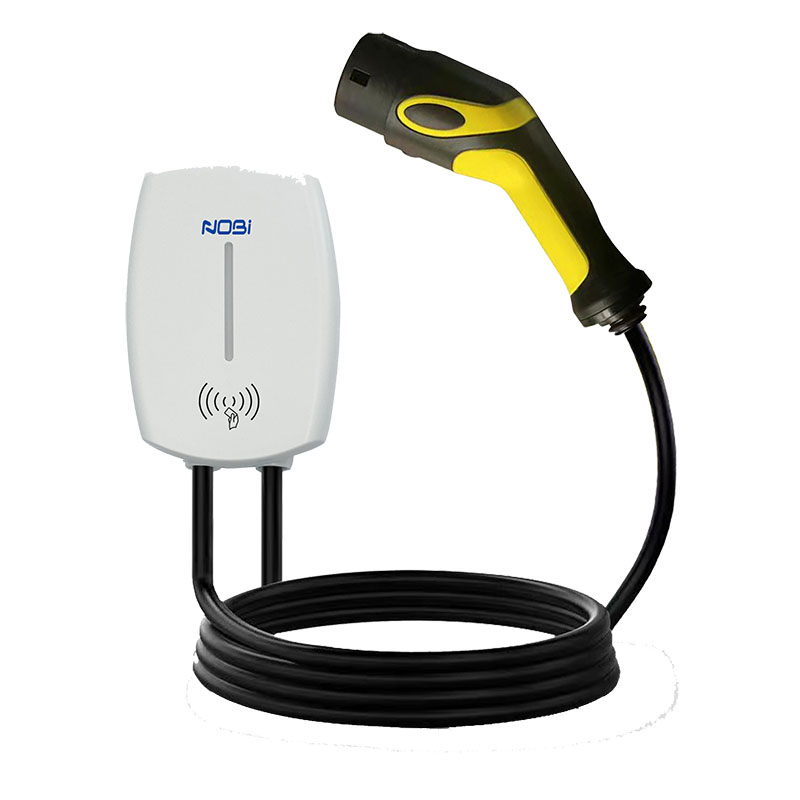

Home use 16A 3.6KW Wall mounted EV charging stations
Product Introduction
The wallbox ev charging stations were created to give your electric vehicle a powerful smart charger in an incredibly small size. The Pulsar range is perfect for daily use at home. Its compact dimensions and minimalist design fit any garage and is enhanced by multiple functions found on the app.
Customized Service
We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
OEM includes color, length, logo, packaging, etc.
ODM includes product appearance design, function setting, new product development, etc.
MOQ is depend on different customized requests.
Product Features
For use with any SAE J1772 compatible electric vehicle;
Nice shape, hand-held ergonomic design, easy to use;
Protection class: IP55(in mated conditions);
Select either 5 meter or customized length charging cable;
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.
Specification
Suitable for every electric car with type 1 or type 2 charging plug. Choose between 7.4 kW, 11 kW or 22 kW.
|
Input & Output—— |
|||
|
Input/Output Voltage |
230Vac±10% |
Output current |
32A 1Phase |
|
Input frequency |
55Hz/60Hz |
Charging gun type |
Type 1：IEC 62196-2 |
|
Rated power |
7KW |
Cable length |
3.5-7 meters |
|
Power Factor |
>0.99 |
Overall efficiency |
0.96 |
|
——Protection—— |
|||
|
Overvoltage protection |
yes |
Undervoltage protection |
yes |
|
Overload protection |
yes |
Short circuit protection |
yes |
|
Earth leakage protection |
yes |
Over temperature protection |
yes |
|
Lightning protection |
yes |
Overcurrent protection |
yes |
|
——Function and Accessory—— |
|||
|
Network connection |
NO (Ethernet/WIFI/3G/4G optional) |
Visual Indication |
LED Indicator light |
|
Communication Protocol |
NO (OCPP 1.6J Optional) |
Push Button |
Emergency Stop |
|
LCD Display |
No/2.4 inch screen |
Language |
English (Optional) |
|
RCD |
Type A/Type B (optional) |
RFID |
yes (Optional) |
|
——Working environment—— |
|||
|
Protection degree |
IP55 |
Maximum altitude |
Up to 2000m(6,000 ft.) |
|
Environment temperature |
-20℃~+60℃ |
Cooling |
Natural cooling |
|
Storage temperature |
-40℃~+80℃ |
Operating humidity |
≤95% non-comdensing |
|
Applicable Scene |
Indoor/Outdoor |
Acoustic noise |
＜55dB |
|
Standby power consumpiton |
<5W | ||
Installation & Storage
Ensure that there is a ground wire in your power supply;
Arrange the EV charging station for an enough safe place, protected from accidents and theft.
The Agency Policy
Please contact our sales department for more details.
However, according to the feedbacks from markets, we seldom have after-sale problems because strict product inspections arecarried out before leaving the factory. And all of our products are certificated by top testing institutions such as CE from Europe and CSA from Canada. Providing safe and guaranteed products is always one of our greatest strengths
