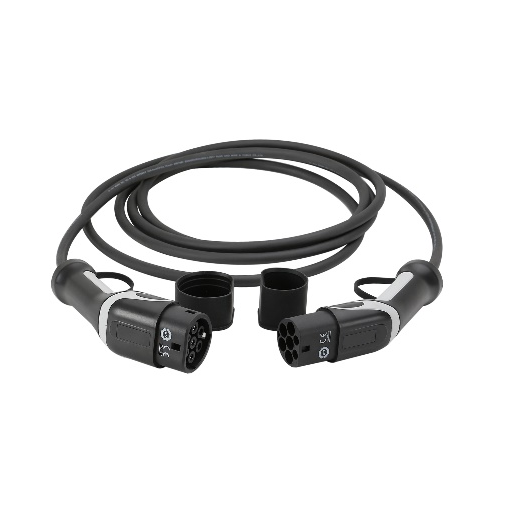

32A Type 2 To Type 2 AC EV Charging Cable

Rated Current: 16A/32Amp/40Amp

Operation Voltage: AC120V/AC240V/AC480V

Insulation Resistance: ＞1000MΩ (DC 500V)

Withstand Voltage: 2000V

Pin Material: Copper Alloy, Silver Plating

Contact Resistance: 0.5mΩ Max

Operating Temperature: -30°C~+50°C

Waterproof Degree: IP55

Get A Quote Download as PDF

Details

Product Tags

Product Introduction

Fast Charge your EV at 3.7kW or 7.4kW (8 hours or 4 hours respectively for a 30kw Battery).

Strong Impact resistant from a 1 meter drop onto concrete. Dust and splash-resistant with an IP Rating* of 54 when mated.

Comfortable The contoured grip fits in your palm comfortably allowing for easy insertion and removal of the plugs.

Compatible Suitable for all Type 2 electric vehicles including Tesla, Jaguar, Renault, Kia, BMW, Ford, Audi, Vauxhall, Nissan, MG, Mercedes, Hyundai. 32A cables are backward compatible with 16A supplies.

32A Type 2 To Type 2 AC EV Charging Cable

Product Features

Rated current	16A/32A	Terminal temperature	く50K
Operation voltage	250V/480V	Withstand voltage	2000V
Insulation resistance	>500MΩ（DC500V）	Coupled insertion force	45NくFく100N
Contact Resistance	0.5mΩ Max	Operating temperature	-30℃- +50℃

Specification

Rated Current: 16A/32Amp/40Amp
Operation Voltage: AC120V/AC240V/AC480V
Insulation Resistance: ＞1000MΩ（DC 500V）
Withstand Voltage: 2000V
Pin Material: Copper Alloy, Silver Plating
Shell Material: Thermoplastic, Flame Retardant Grade UL94 V-0
Mechanical Life: No-Load Plug In / Pull Out ＞10000 Times
Contact Resistance: 0.5mΩ Max
Terminal Temperature Rise: ＜50K
Operating Temperature: -30°C~+50°C
Impact Insertion Force: >300N
Waterproof Degree: IP55
Cable Protection: Reliability of materials, antifoaming, pressure-resistant, abrasion resistance, impact resistance and high oil
Flame Retardant: Grade TUV, UL, CE Approved

Cable

Rated Current(A)	Standard	Cable Specification	Remark
16(Single phase)	Type 2	3X2.5MM²+1X0.75MM² TPUΦ10.5/TPEΦ13

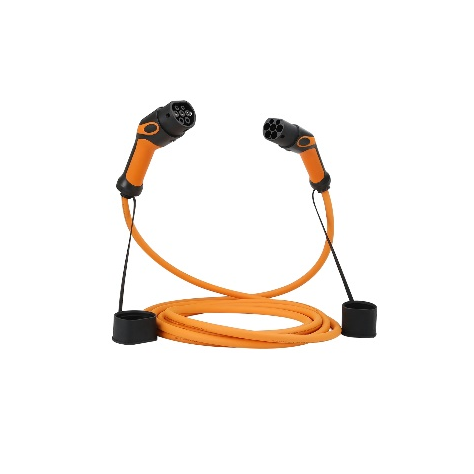

16(Three phase)		5X2.5MM²+1X0.75MM² TPUΦ13/TPEΦ16.3	Shell color: Black/White Cable color: Black/Orange/Green
32/40(Single phase)		3X6MM²+1X0.75MM² TPUΦ13/TPEΦ16.3
32/40(Three phase)		5X6MM²+1X0.75MM² TPUΦ16.3

Installation & Storage

Please match your charging point correctly;
For the longevity of your cables, it’s best to keep them well organized and in damp free environment while stored in your EV. We recommend using a cable storage bag to keep your cables stored safely.
