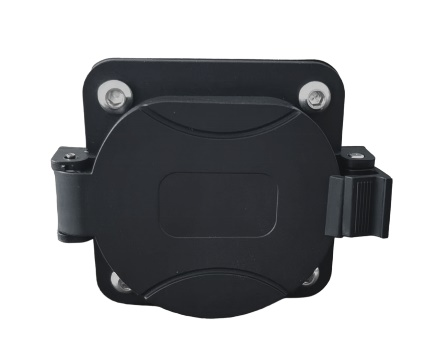

32A SEA J1772 Type 1 AC EV Charging Socket

Materials

Shell material: Thermoplastic (Insulator inflammability UL94 V-0);

Contact Pin: Copper alloy, silver or nickel plating;

Sealing gasket: rubber or silicon rubber.


Details

Product Tags

Product Introduction

The charging speed depends on three components - the charging station, which is the source of power, the charging cable and the on-board charger. You should select right EV charging connector to fit this system. Type 1 is a single-phase plug and is standard for EVs from America and Asia (Japan & Korea). It allows you to charge your car at a speed of up to 7.4 kW, depending on the charging power of your car and grid capability. This socket is designed for use in EV charging cables and will mate with any J1772 specified plug. It’s rated at 70A and therefore are suitable for 16 and 32 amp or higher current applications as per the IEC 61851-2001 / SAE J1772-2001 standard.  Shell colors are black, white, or customized.

dfbdfbd (3)

Applicable Models

The Type 1 socket is compatible with all Japanese and USA-built EVs (except Teslas) eg:
All Nissan EVs
Mitsubishi i-MiEV / Outlander
All Vauxhall EVs and Plug-in Hybrids
Citroen C-Zero
Peugeot Ion
All Toyota EVs and Plug-in Hybrids
Renault Kangoo / Fluence
Kia Soul (not Optima - Type 2)
Fisker Karma
Ford C-MAX Energi / Ford Focus EV
Lightning EV
Mercedes Vito E-Cell Van
lMIA Electric
Toyota Prius PHEV

grherh (1)

Product Features

Meet SEA J1772 standard;
Nice shape, hand-held ergonomic design, easy to use;
Protection class: IP67(in mated conditions);
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.

Electrical Performance

Rated current:16A/32A/40A;
Operating voltage: 110/250/480V AC;
Insulation resistance:>500MΩ(DC500V);
Terminal temperature rise:<50K;
Withstand voltage:2000V;
Contact impedance: 0.5mΩ Max
Vibration resistance: Meet JDQ53.36.1.1-53.36.1.2 requirements.

Mechanical properties

Mechanical life: no-load socket in/pull out >10000 times
Insertion and coupled Force: 45N<F<80N;
Operating temperature: -30°C ~ +50°C

Installation & Storage

Please match your charging point correctly;
Store it in waterproof place to avoid short circuit during use.
